HD IR / HD RGB
SPC - 1280 Dual
720p radiometric LWIR plus 720p global-shutter RGB. Cockpit HD-SDI video, streaming H.264 MISB KLV and passive mapping.
// Product Overview
Lab 308 | Products
HD Thermal & RGB Cockpit Video. Passive Mapping. Streaming Video.
HD IR
SPC - 1280
Realtime intelligence for every pilot: live thermal video, hotspot detection and geo-snapshots with no extra tasks.
SD IR or HD IR | Modular Mapping

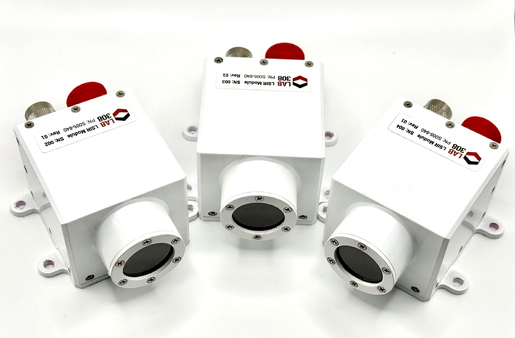

LSIR
Zero-operator IR mapping. Distributed modules work together to deliver a live, instantaneous view of the fire from above.
3 IR 640 | 1 RGB | 1 NIR
All in One (AiO)
Three LWIR cameras plus 3.2MP RGB and NIR sensors in one orbit-ready fire mapping system. Integrated GPS/INS, geolocated streaming video and multispectral maps before, during and after a wildfire—with no operator input or special flight paths.
720p Down / HD Angled · Dual RGB
Smart Color Camera (SCC)
Rugged dual-color aviation camera with integrated INS and global-shutter video. A wide-angle downward view and 15° forward- or rearward-facing sensor deliver live video, geotagged snapshots and cloud-connected RGB mapping.
3 IR | 1 RGB · Coming 2027

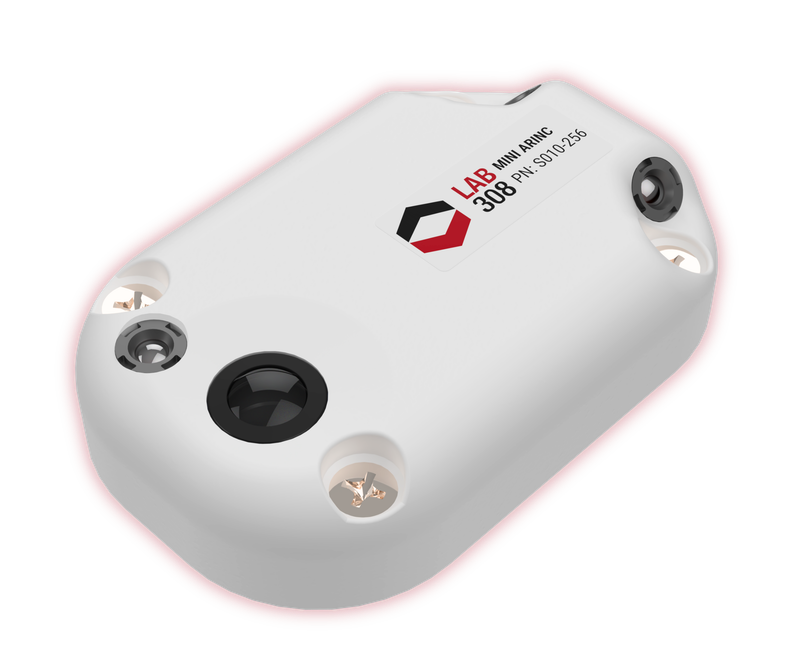

miniARINC Mapper
GPS-antenna sized. Three LWIR cores and horizon-to-horizon RGB in the smallest wildfire mapping system by far.
// Specifications
Products at a glance
| SPC Dual | SPC | LSIR HD | LSIR SD | SCC | AiO | miniARINC | |
|---|---|---|---|---|---|---|---|
| Weight | 600g | 430g | 340g | 285g | 500g | 1.1kg | 135g |
| HFOV | 60° | 60° | 60° | 60° | 150° down / 80 fwd° | 150° | 150° |
| Radiometric LWIR | Yes | Yes | Yes | Yes | - | Yes | Yes |
| Geolocated Images | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Geolocated Video | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| HD-SDI video | *yes, or PoE | *yes, or PoE | - | - | - | - | - |
| PoE | *yes, or HD-SDI | *yes, or HD-SDI | - | - | Yes | - | - |
| GPS Receiver | Yes | Yes | Yes | Yes | Optional | Yes | Yes |
The full Lab 308 family brochure in one PDF: every payload, specification and output.
Family brochure PDF// Hardware outputs
Ready to connect.
// Every Lab 308 payload
- H.264 MISB KLV Digital Video
MISB ST 0601, H.264 over IEEE 802.3ab (1 Gbps) - Full-resolution Geo-Snapshots with IR temp
Stills that drag and drop into any GIS application - Cloud outputs
Orthorectified mosaics with IR hotspots, fire perimeters (.SHP, .KML)
// SPC cameras only
SPC - 1280 · SPC - 1280 Dual
- HD-SDI Low Latency Video
Direct cockpit viewing | SMPTE 292M | 1.485 Gbit/s
Don't see what you're looking for?
Lab 308 also offers custom product development, with expertise across specialized hardware and software—from sensor integration and ruggedized systems to image processing and custom interfaces.
