// HD IR / HD RGB
SPC - 1280 Dual
Next-generation thermal & RGB imaging.
HD cockpit video. Geolocated streaming. Passive fire mapping in a compact, rugged aviation camera.
// SPC - 1280 · Dual-band imaging
Two views. One mission-ready system.
720p radiometric LWIR pairs with global-shutter RGB to deliver a clear view of the incident. Integrated GPS/INS, onboard multi-day storage and native cloud offload connect live awareness to geolocated intelligence.
$48,600 HD/Lease from $10,850 for 3 months
// Capabilities
Intelligence in the cockpit. And beyond.

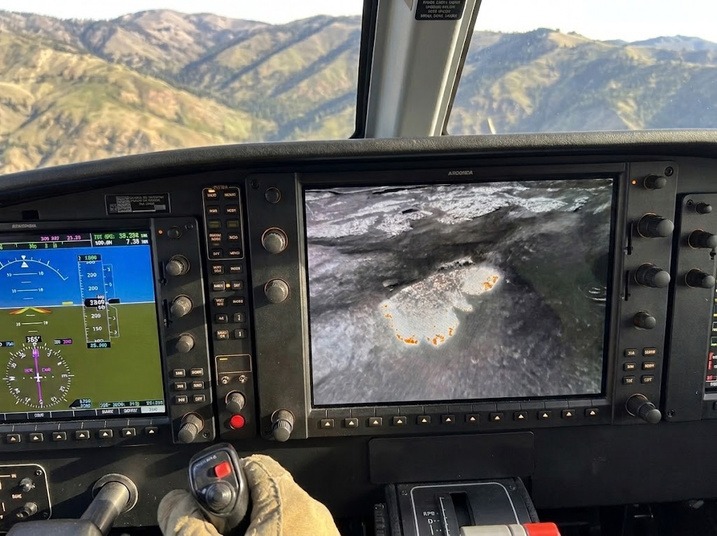

Low-latency cockpit video
HD-SDI thermal or RGB video for direct cockpit viewing. Radiometric LWIR reveals heat through smoke and darkness; global-shutter RGB avoids vibration artifacts.
Simultaneous IR + RGB streams
720p H.264 full-motion video with MISB KLV metadata streams RGB and IR simultaneously. Full-resolution geolocated snapshots include IR temperature data.
Orbit-ready passive mapping
A fixed camera collects imagery without special flight paths or a dedicated operator. Cloud-connected processing supports real-time maps and incident-wide awareness.
// Specifications / HD configuration
Small footprint. Serious capability.
- Weight (HD)
- 600 g / 1.3 lb
- Power
- 20 W / 28V DC
- Sensors
- LWIR (720p); global-shutter RGB (720p)
- Radiometric accuracy
- ±10°C at operating altitude
- IR GSD at 2,500 ft
- 0.65m (HD); 1.3m (SD)
- RGB GSD at 2,500 ft
- 0.52m
- Field of view (HD)
- 60° H × 48° V
- Connection
- 1 Gbps Ethernet; HD-SDI
- GPS
- L1 GPS, multi-constellation or digital input
- Mounting
- Threaded hardpoints; optional brackets
- Cloud hosting
- Service-provider agnostic
// Purchase & seasonal leases
Choose your configuration.

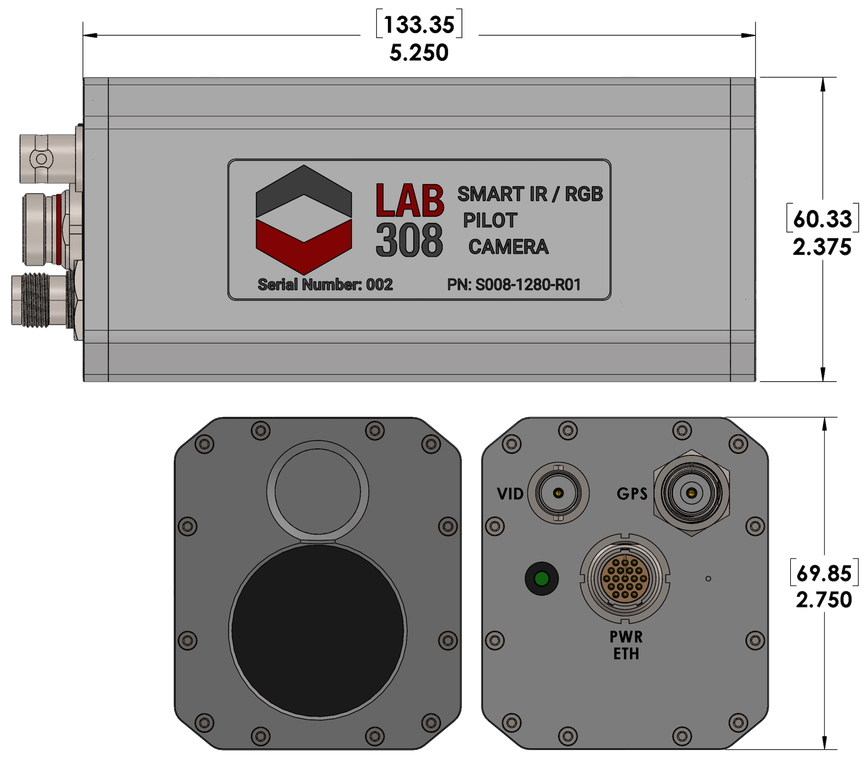

| Configuration | Size (L × W × H) | Weight | Purchase | 3-month lease | 6-month lease |
|---|---|---|---|---|---|
| HD (720p) · 60° | 5.25" × 2.375" × 2.75" | 600 g / 1.3 lb | $48,600 | $10,850 | $18,100 |
| SD (480p) · 80° | 5.25" × 2.375" × 2.75" | 545 g / 1.2 lb | $40,250 | $8,650 | $14,350 |
Contact us for customized variants. Specifications and pricing are subject to change.
// Hardware outputs
Ready to connect.
- HD-SDI video
Direct cockpit viewing · SMPTE 292M · 1.485 Gbit/s
- H.264 MISB KLV digital video
MISB ST 0601 · IEEE 802.3ab · 1 Gbps Ethernet
- Full-resolution geo-snapshots
Geolocated stills with IR temperature data for GIS applications
// Software / Cloud outputs
Ready to share.
- Orthorectified image mosaics with IR hotspots
- Active-fire perimeters in .SHP and .KML formats
- Full- and low-resolution geo-snapshots
- H.264 streaming video
- Compatibility with leading GIS and fire common operating picture software
No ongoing software license is required for direct viewing. Cloud providers and GIS software may incur usage charges.
// Product documentation
SPC - 1280 Dual datasheet
Full specifications, configurations and outputs · PDF · 2 pages
